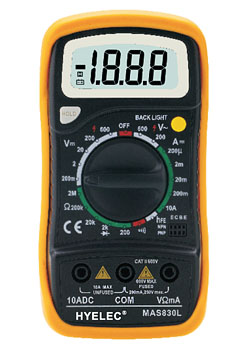

Model：MAS830L
Products Name：DIGITAL MULTIMETER
|
Specifications
|
Range
|
Accuracy
MAS830L
|
|
DC Voltage
|
200mV/2V/20V/200V
600V
|
±(0.5%+2)
±(0.8%+2)
|
|
AC Voltage
|
200V/600V
|
±(1.2%+10)
|
|
DC Current
|
20μA
200μA/2mA/20mA
200mA
10A
|
±(1.0%+2)
±(1.0%+2)
±(1.5%+2)
±(3.0%+2)
|
|
Resistance
|
200Ω/2kΩ/20kΩ/200kΩ
2MΩ
|
±(0.8%+2)
±(1.0%+2)
|
|
Features
|
|
Display
|
2000 Counts
|
|
Data hold
|
√
|
|
Back light
|
√
|
|
Diode test
|
√
|
|
Continuity
|
√
|
|
General
|
|
Power supply
|
9V6F22 Battery
|
|
Weight
|
Approx 170g
|
|
Size
|
138mmX69mmX31mm
|
|
Safety Rating
|
CE ETA CAT.II600V RoHS
|
