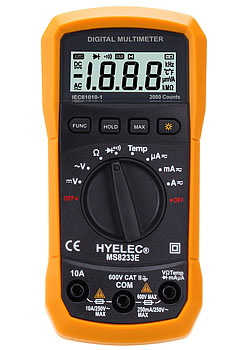

Model：MS8233E
Products Name：DIGITAL MULTIMETER
|
Specifications
|
Range
|
Accuracy
MS8233E
|
|
DC Voltage
|
200mV/2V/20V/200V
600V
|
±(0.5%+2)
±(0.8%+2)
|
|
AC Voltage
|
2V/20V/200V/600V
|
±(1.0%+3)
|
|
DC Current
|
200μA/2mA/20mA/200mA
10A
|
±(1.0%+3)
±(3.0%+3)
|
|
AC Current
|
200μA/2mA/20mA/200mA
10A
|
±(1.2%+3)
±(3.0%+5)
|
|
Resistance
|
200Ω/2kΩ/20kΩ/200kΩ/2MΩ
20MΩ
|
±(0.8%+2)
±(1.0%+2)
|
|
Temperature(°C)
|
-20°C~1000°C
|
±(3.0%+3)
|
|
Temperature(°F)
|
-4°F~1832°F
|
±(3.0%+3)
|
|
Feature
|
|
Display
|
2000 Counts
|
|
Auto range
|
√
|
|
Data hold
|
√
|
|
Back light
|
√
|
|
Diode test
|
√
|
|
Continuity
|
√
|
|
Maximum Value hold
|
√
|
|
General
|
|
Power supply
|
9V6F22 Battery
|
|
Weight
|
Approx 110g
|
|
Size
|
140mm x67mm x30mm
|
|
Safety Rating
|
CE ETA CAT.II600V RoHS
|
